ZL-700C-033

Quantity:
  • CE

  • To Order

  • 80000

  • Hangzhou, China

  • SKD or CKD

  • 1

  • T/T

Product Description

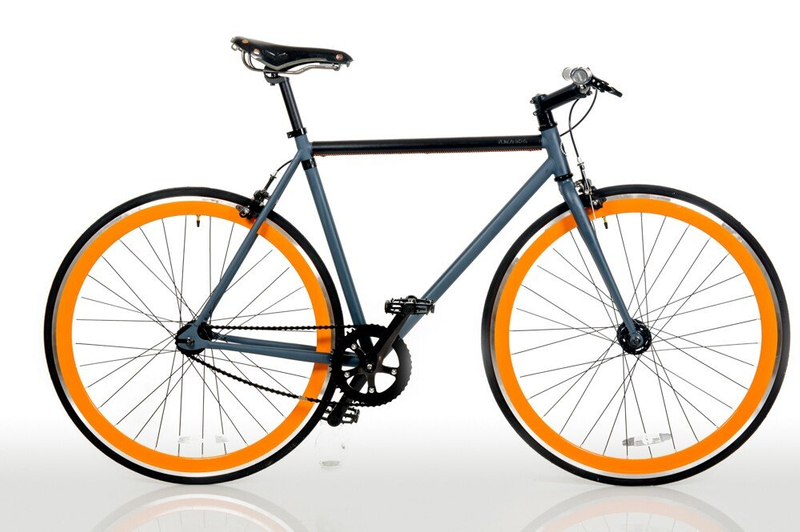

Track Bicycle, Fixed Gear Bicycle/Bike
Size 41/ 43/47/48/50/52/54/56/58/60/63CM
High Pull Carbon steel /Alloy/Cr-mo/Cabon Frame
High Pull Carbon steel /Alloy/Cr-mo/Cabon Fork
Riser Bar/Bull Horn/Drop Bar/Pista Bar/Pursuit Bar
Oury Grips
NECO Headset
ZOOM  Stem
32H Alloy Deep V 700c x 28mm CNC RIM
KT Hub
KENDA  Tyres and Tubes
165mm Forged Alloy 2pc. Design w/ Outboard Sealed Bearing BB
46-16 Gearing (includes freewheel and fixed cog)
KMC Chain
WELLGO Pedals
PROMAX /RADIUS alloy caliper-brake and lever
ZOOM Seat  Post

Technical Data Sheet
Model
Parts Color or technical ref MATERIAL
FRAME 26''&700C Hi-Tensile Steel Hi-Ten Steel
FORK 26''&700C Hi-Tensile Steel Hi-Ten Steel
FENDER With taillights
CHAINCOVER 26'':380mm   700C:405mm
DECAL CUSTOM DESIGN common decals COMMON
PAINTING Colour to order.(YS paint )
HEAD PARTS 22.2*30*33mm 10 pcs loose ball Alloy
B.B. SET bottom bracket  68mm/110.5mm Steel
STEM  22.2*180L*80mm  20 degree Alloy
HANDBAR 25.4*22.2*560mm*2.4T Alloy
SEAT POST 25.4mm*300mm   *2.6T              ALLOY
F/RIM 13GX36HX30MM A/V CNC  ALLOY
F/HUB 14GX36H 3/8''*100*140   ALLOY
SPOKES & NIPPLES Stainless STEEL        13G    STEEL
F/TYRE & TUBE 700C*35C   TUBE : BUTYL  F/V  RUBBER
R/RIM 13GX36HX30MM A/V CNC  ALLOY
R/HUB 14GX36H 3/8*110*150mm  ALLOY
SPOKES & NIPPLES Stainless STEEL 13G   STEEL
R/TYRE & TUBE 700C*35C TUBE : BUTYL  F/V   presta valves RUBBER
 BRAKE(F&R) F=35mm R=15mm   ALLOY
BRAKE LEVER(F&R) 22.2 BK
BRAKE CABLE F=550*700  R=700C:1350*1500,26''=1300*1450
CHAIN WHEEL  1/2"*1/8"*44T   x165mm  ALLOY crank Alloy
PEDAL 9/16"  ALLOY
FREEWHEEL 1/2''*1/8''*16T  STEEL
CHAIN 26'':1/2''*1/8'' *100L        700C : 102L STEEL
Grip 22.2  130/130mm Synthetic Leather
SADDLE   Synthetic Leather
PACKING SKD
