ZL-700C-034

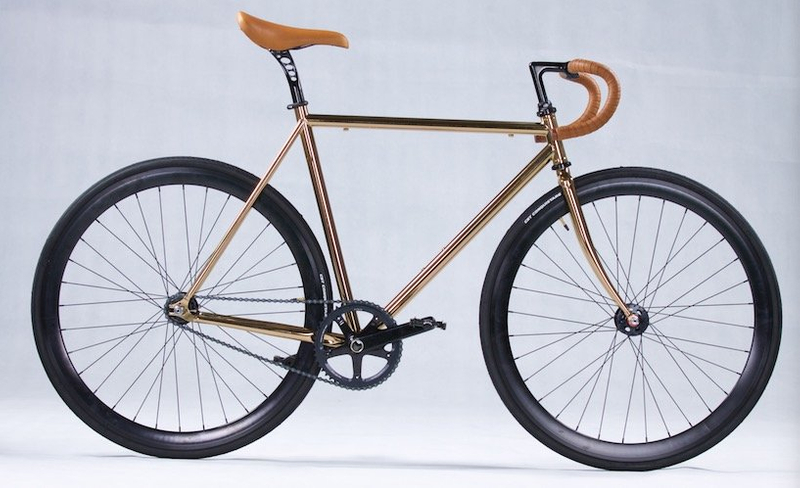

Track Bicycle, Fixed Gear Bicycle/Bike
Size 41/ 43/47/48/50/52/54/56/58/60/63CM
High Pull Carbon steel /Alloy/Cr-mo/Cabon Frame
High Pull Carbon steel /Alloy/Cr-mo/Cabon Fork
Riser Bar/Bull Horn/Drop Bar/Pista Bar/Pursuit Bar
Oury Grips
NECO Headset
ZOOM  Stem
32H Alloy Deep V 700c x 28mm CNC RIM
KT Hub
KENDA  Tyres and Tubes
165mm Forged Alloy 2pc. Design w/ Outboard Sealed Bearing BB
46-16 Gearing (includes freewheel and fixed cog)
KMC Chain
WELLGO Pedals
PROMAX /RADIUS alloy caliper-brake and lever
ZOOM Seat  Post

Model
Parts	Color or technical ref	MATERIAL
FRAME	26''&700C Hi-Tensile Steel	Hi-Ten Steel
FORK	26''&700C Hi-Tensile Steel	Hi-Ten Steel
FENDER	With taillights
CHAINCOVER	26'':380mm   700C:405mm
DECAL	CUSTOM DESIGN common decals	COMMON
PAINTING	Colour to order.(YS paint )
HEAD PARTS	22.2*30*33mm 10 pcs loose ball	Alloy
B.B. SET	bottom bracket  68mm/110.5mm	Steel
STEM	22.2*180L*80mm  20 degree	Alloy
HANDBAR	25.4*22.2*560mm*2.4T	Alloy
SEAT POST	25.4mm*300mm   *2.6T	ALLOY
F/RIM	13GX36HX30MM A/V CNC	ALLOY
F/HUB	14GX36H 3/8''*100*140	ALLOY
SPOKES & NIPPLES	Stainless STEEL        13G	STEEL
F/TYRE & TUBE	700C*35C   TUBE : BUTYL  F/V	RUBBER
R/RIM	13GX36HX30MM A/V CNC	ALLOY
R/HUB	14GX36H 3/8*110*150mm	ALLOY
SPOKES & NIPPLES	Stainless STEEL 13G	STEEL
R/TYRE & TUBE	700C*35C TUBE : BUTYL  F/V   presta valves	RUBBER
BRAKE(F&R)	F=35mm R=15mm	ALLOY
BRAKE LEVER(F&R)	22.2	BK
BRAKE CABLE	F=550*700  R=700C:1350*1500,26''=1300*1450
CHAIN WHEEL	1/2"*1/8"*44T   x165mm  ALLOY crank	Alloy
PEDAL	9/16"	ALLOY
FREEWHEEL	1/2''*1/8''*16T	STEEL
CHAIN	26'':1/2''*1/8'' *100L        700C : 102L	STEEL
Grip	22.2  130/130mm	Synthetic Leather
SADDLE		Synthetic Leather
PACKING	SKD
